Old gasket useless, and no replacement available? No problem – simply make a new one yourself. Select the most suitable material for your sealing needs from four different types. The application table provides information about which material can be used where and under which conditions.
Next, you make an impression of your sealing surface, then get your tools – and you‘re ready to go.

www.victorreinz.com/jsi

 AFM 22AFM 37/8REINZOLOID FS 53RGC 257
Material Aramid fiber with metal core
Aramid fiber
Cellulose
Rubber/cork
Application Cylinder head
Exhaust manifold
Geerboc flange
Inlet manifold
etc.
Axles
Gearbox
Inlet manifold
Instruments
Oil sump
Piping
Pumps
Valve cover
etc.
Axles
Carburettor
Flange
Fuel pumps
Gearbox
Oil pumps
Steering housing
Thermostats
Water pumps
etc.
Control units
Gearbox cover
Oil sump
Valve cover
etc
Temperaturbereich [°C] < 400
< 300
< 120
< 150
Medienbeständigkeit Fuel
Oil
Antifreeze and anti-
corrosion products
Fuel
Oil
Antifreeze and anti-
corrosion products
Fuel
Oil
Antifreeze and anti-
corrosion products
Fuel
Oil

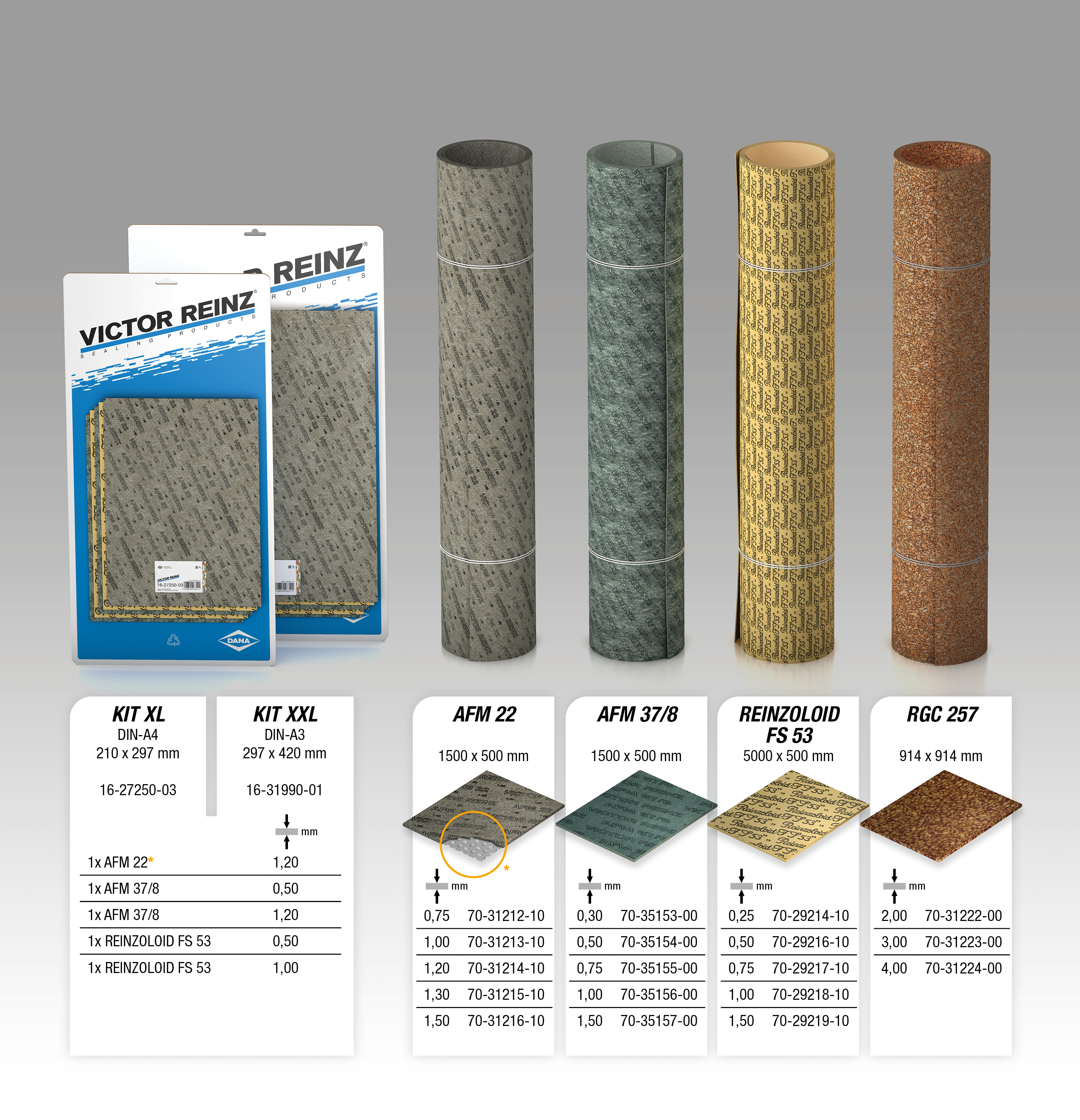

XL and XXL Repair Kit

  • The XL and XXL repair kits contain sealing materials with and without metal core
  • The materials, thicknesses, and sizes available for XL are designed for small repairs; the XXL kit is for larger sized parts

AFM 22

  • Aramide fiber on metal core
  • Temperature up to + 400 °C
  • Fluid resistance: fuels, oils, antifreeze and corrosion inhibitors

Applications: intake manifolds, exhaust manifolds, transmission flanges, cylinder heads, etc.

AFM 37/8

  • Aramide fiber without metal core
  • Temperature up to + 300 °C
  • Fluid resistance: fuels, oils, antifreeze and corrosion inhibitors

Applications: axles, intake manifolds, apparatuses, transmissions, oil pan, pumps, pipelines, valve covers, etc.

REINZOLOID FS 53

  • Sealing paper (cellulose)
  • Temperature up to + 120 °C
  • Fluid resistance: fuels, oils, antifreeze and corrosion inhibitors

Applications: axles, flanges, transmissions, fuel pumps, oil pumps, steering gear case, thermostats, carburettors, water pumps, etc.

RGC 257

  • Rubber-cork material
  • Temperature up to + 150 °C
  • Fluid resistance: fuels, oils

Applications: gear box cover, oil pan, control devices, valve cover, etc.

Technical Data

RGC 257
Reinzoloid FS 53
AFM 37/8
AFM 22
